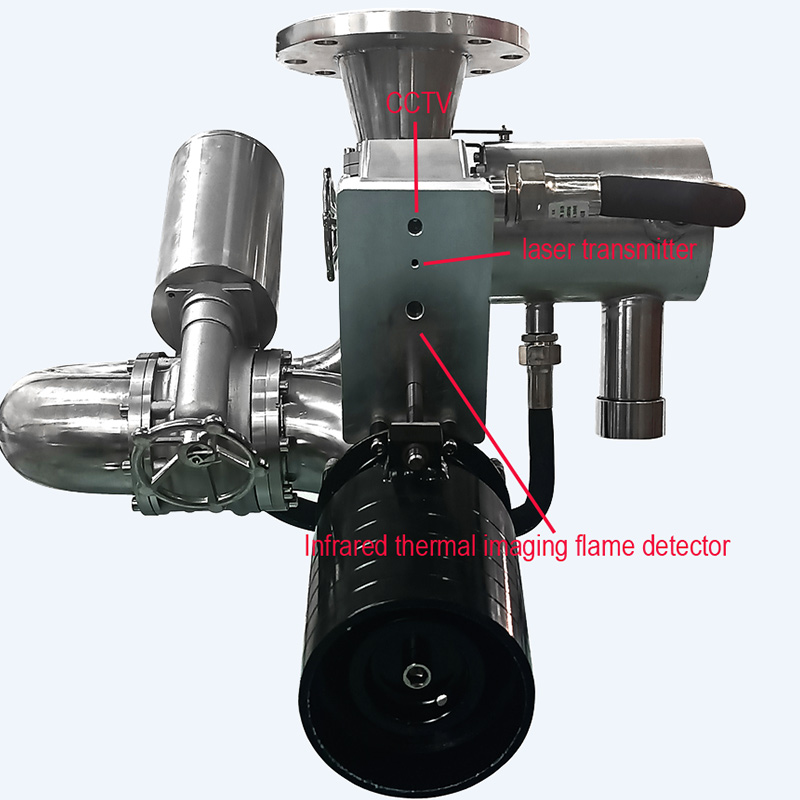

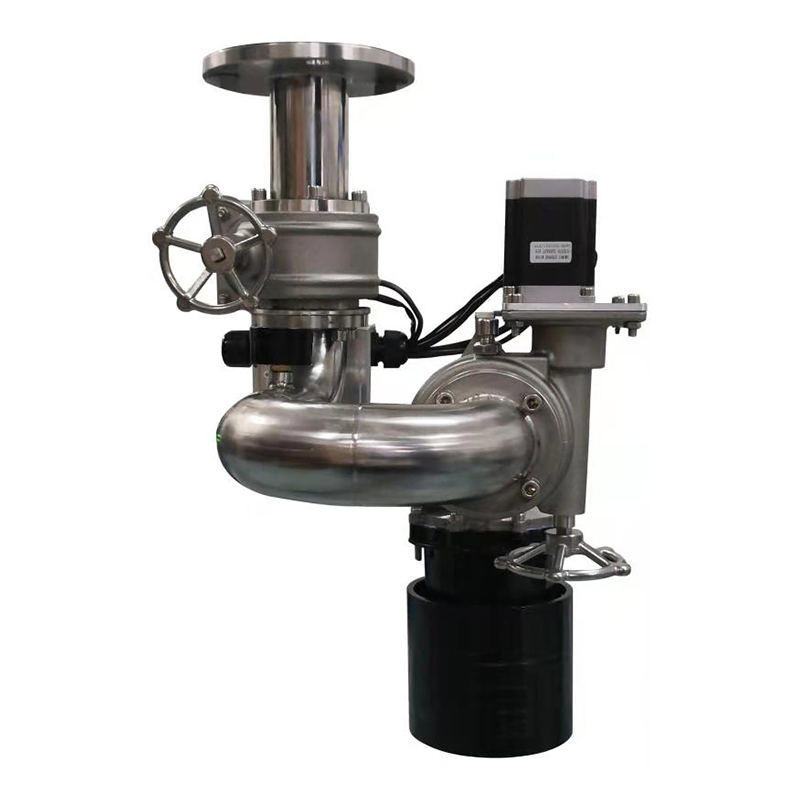

Water Cannon is a fast-acting fire protection system used primarily to protect against rapid fire spread in high-risk areas. Due to their high intelligence and humanization, Fire Spray nozzles typically replace deluge systems/sprinkler systems in high-risk areas or areas with large space, though both systems can work together as well. Fire Monitor may also be used for helicopter deck protection and in other large spaces to strengthen fire protection of those areas. In addition to fire prevention, Fire Monitor can also be used for early warning and Video Monitoring.
InquiryMultimode selection
Four modes of Fire Monitor,
valve, water pump, and laser can
beset respectively, which can be
selected as required

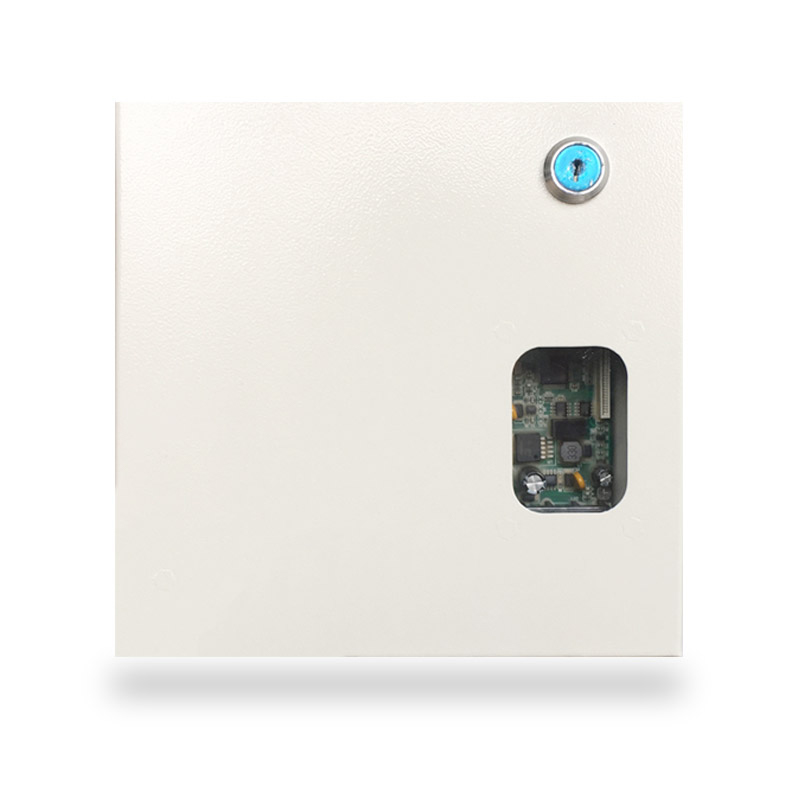

The Host can remotely debug
all parameters of Fire Monitor，
The app can also be swiped
remotely
The period can be set for each
the device, timing conversion between
manual and automatic, better
combination of artificial protection
and technical protection
Working pressure: 0.8MPa
Flow rate: 50L/s
Protection radius: 52m
Jet radius: 58m
Working voltage: 85-242VAC
Power consumption: Locating: max 18 watts
Scanning: max. 30 watts
Positioning time: ≤ the 30s
Fire extinguishing time: ≤3 mins
Horizontal protection angle: 0-360°
Installation height: 8-15m
Scope of application: General purpose industrial buildings and structures, high occupancy places, large space building, for example, airports, railway stations, museums, industrial plants, large shopping malls, large warehouses, power plants, coal mines, colleges, and universities, etc
The insulation resistance test of the fire extinguishing device shall be carried out according to Article 6.6. The insulation resistance between the external live terminal of the fire extinguishing device and the lighting shall be greater than 20MΩ.
The fire extinguishing device shall be tested for voltage fluctuation adaptability in accordance with Article 6.9, and it shall be able to start and work normally within the range of 10% of rated voltage soil.
